15.6 Inch Android OS Capacitive Matsuda POS For Supermarket

Basic Information
Place of Origin: GUANGDONG
Brand Name: Matsuda
Certification: CE,FCC,RHOS
Model Number: ST9600
Minimum Order Quantity: 1 set
Price: Discuss
Packaging Details: Carton, Package dimensions: 43*21*42CM/SET
Delivery Time: 3-5 Work Days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 3000 Sets / Month
Material: Aluminum Alloy Color: Black, White
CPU: RK3288 RAM: 2G
SSD: 16G/32G Screen Size: 15 Inch
Resolution: 1024*768 Warranty: 3 Years
High Light:

Capacitive Matsuda POS


Matsuda POS For Supermarket


Android OS Matsuda POS

15.6 Inch Android OS Capacitive Touch Screen Billing Machine For Supermarket

15.6 Inch Android OS Capacitive Matsuda POS For Supermarket 0


Product Parameters


Part Setting Specification
The host CPU RK3288 J1900/3855
Cortex-A17 1.8 GHz Quad core 2.0 GHz/Dual core 1.6 GHz
OS Support Android 5.1
Display Display size 15.6 inch 16:9
Resolution 1920*1080
Brightness 350cd/m2
Contrast ratio 700:1(Typ.)(transmission)
Touch screen Pure flat surface capacitance 10 point multi-touch
Display area 304.1*228.1mm
Hard Disk 16G
Port Standard USB 4*USB 2.0+2*USB 3.0
RS232 2*RS232
1*12V DCout 1
Audio 1
Option port 12V DCout 1*12V DCout
COM(RS232) 1*COM(RS232)
Peripheral MSR LIF-MSR006ISO7811
RFID LIF-RD01 supports mifare one S50,S70 and its compatible TYPE A and B cards
IC LIF-PC/SC supports standard HID protocol and PC/SC protocol
IBUTTON-A comply with the 1-wire protocol
Customer dispaly 12inch 16:10(1280*800)
VFD 2*20 LED
WIFI 11N wireless 300Mbps
4G Optional
Speaker Optional
Weight 8.5KG
Certification CE,FCC,ROHS

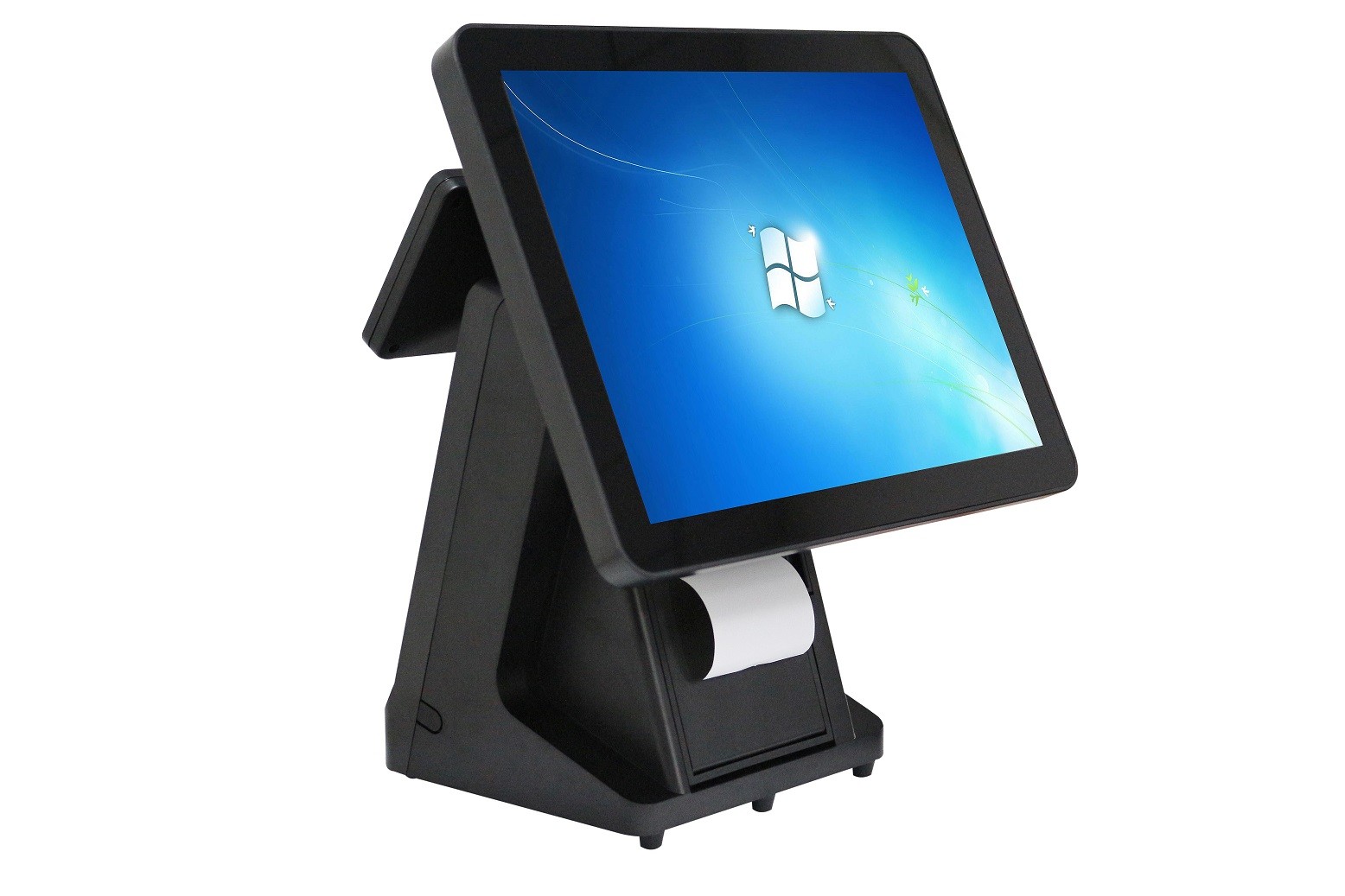

15.6 Inch Android OS Capacitive Matsuda POS For Supermarket 1

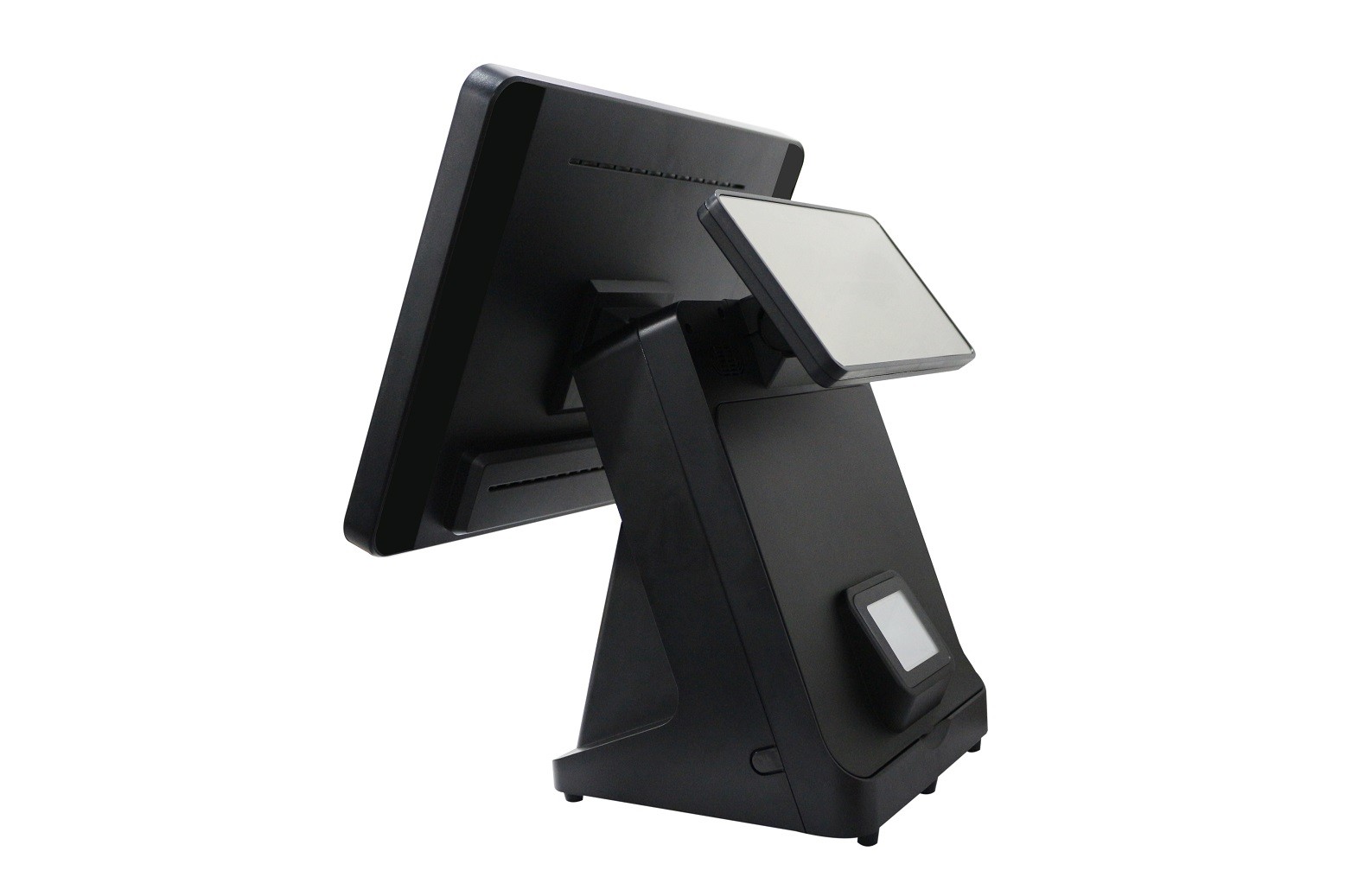

15.6 Inch Android OS Capacitive Matsuda POS For Supermarket 2

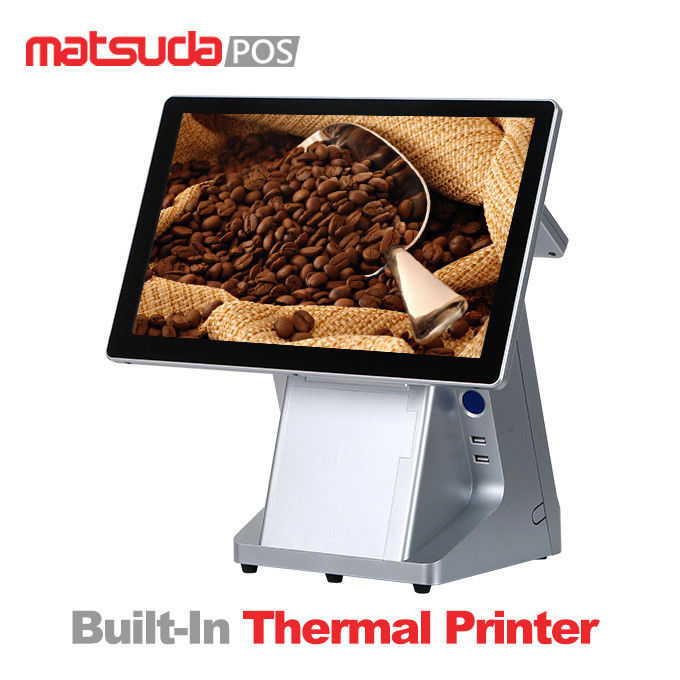

15.6 Inch Android OS Capacitive Matsuda POS For Supermarket 3




               15.6 Inch Android OS Capacitive Matsuda POS For Supermarket 4

15.6 Inch Android OS Capacitive Matsuda POS For Supermarket 5




1.Q:Are you a manufacturer?
Yes,we are a manufacturer.


2.Q: What warranty do you offer?
Each product with 1 year warranty,expect the human damage and force majeure factor .
Beyond the guarantee period machine ,we will provide maintenance service and technical support.


3.Q:Are you still worry about compatibility of PC with your software?
Before you make the order, you could test your software if compatible with our hardware, you could send your software to us or you could Teamviewer.


4.Q:Do you still have lots of complains of after-sale?
With our experience, it is better for you to have a hardware engineer, Once meet problems,you check and solve it at the first time ,avoid causing other trouble ,even irreversible damage. Also you could return to us ,in order to save the shipping cost ,you’d better collection 3pcs of damaged one,then send back to us together. Shipping cost you pay yourside, we pay ourside.


5.Q: What about minimum order quantity?
We have no limit for MOQ, so you can even buy only 1 piece.


6.Q: Are you factory, can you do OEM/ODM?
Yes, we are factory, we can customize as your requirements.


7.Q:How can I pay for the order?

Our payment terms :T/T ,Western Union ,Paypal,Trade assurance Order.


8.Q:How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.


9.Q:What kind of inspection you can provide ?
Each POS machine will ageing test 48 hours ,to guarantee all POS machine are in the perfect condition before shipment .we also accept the inspection by the third part you appointed.
